Load-Transferring Structure Between Bridge Pile Foundation and Pier Column

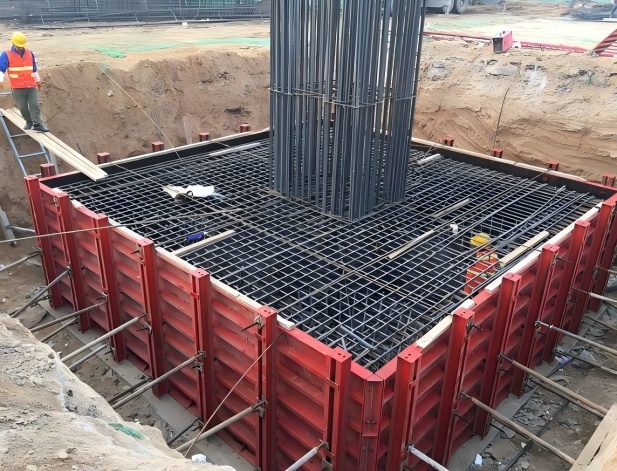

A pile cap is a reinforced concrete platform structure placed on top of piles to connect multiple pile foundations into an integrated whole, playing a key role in uniformly transferring loads from the pier column and superstructure to the pile foundation. Pile caps are classified by position into high pile caps and low pile caps, and are an important component of the bridge substructure.

Inquiry

Product Advantages

Pile Cap

Evenly distributes superstructure loads to each pile foundation with a clear load-transfer path

Significantly enhances the integrity and cooperative load-bearing capacity of the pile group

Reinforced concrete structure offers strong load-bearing capacity and excellent durability

Can be constructed in conjunction with steel cofferdams, adapting to complex conditions such as deep water

Mature structural design with well-established construction techniques
